Caromax 160
CAROMAX160
made in EU
– certificate CE

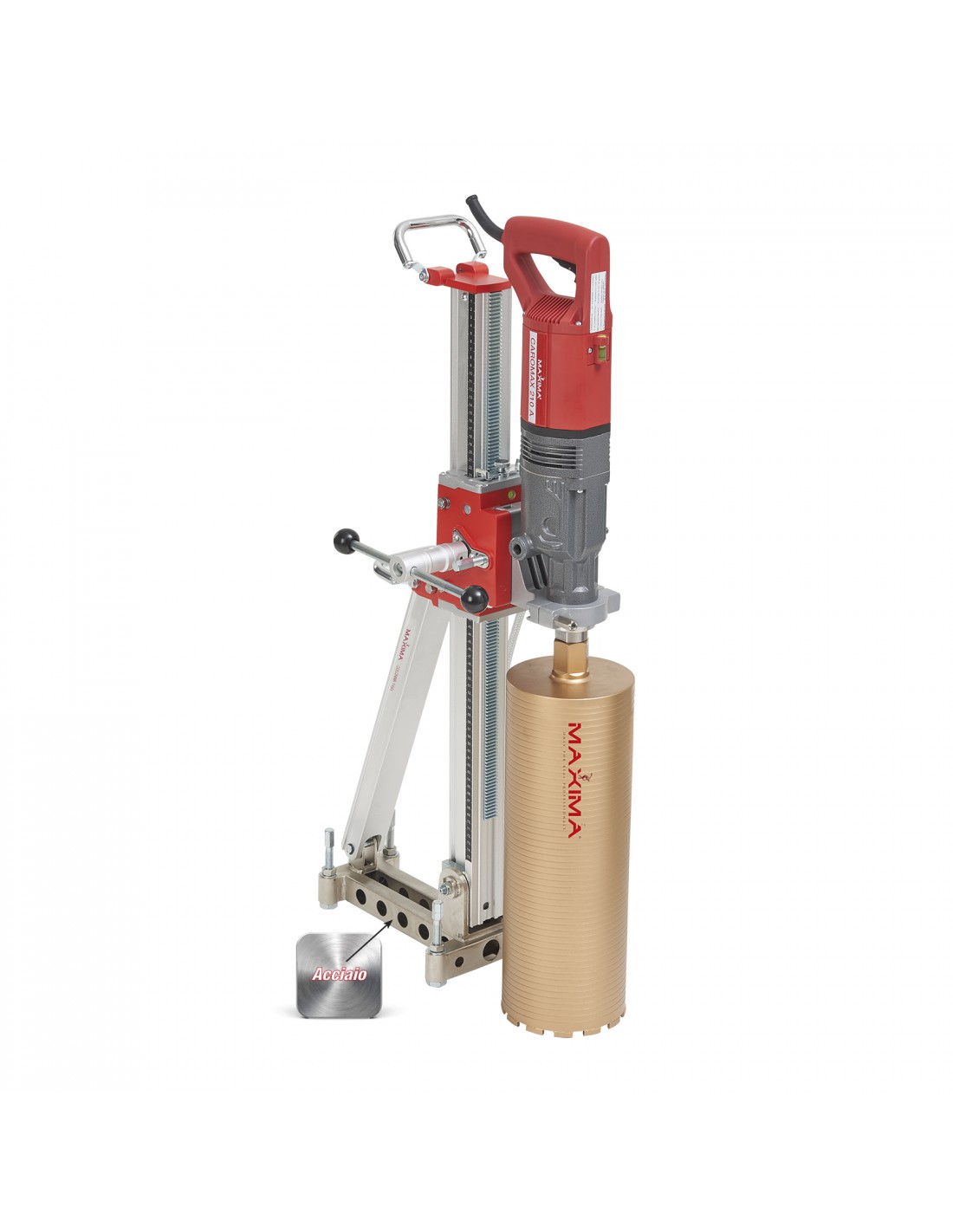

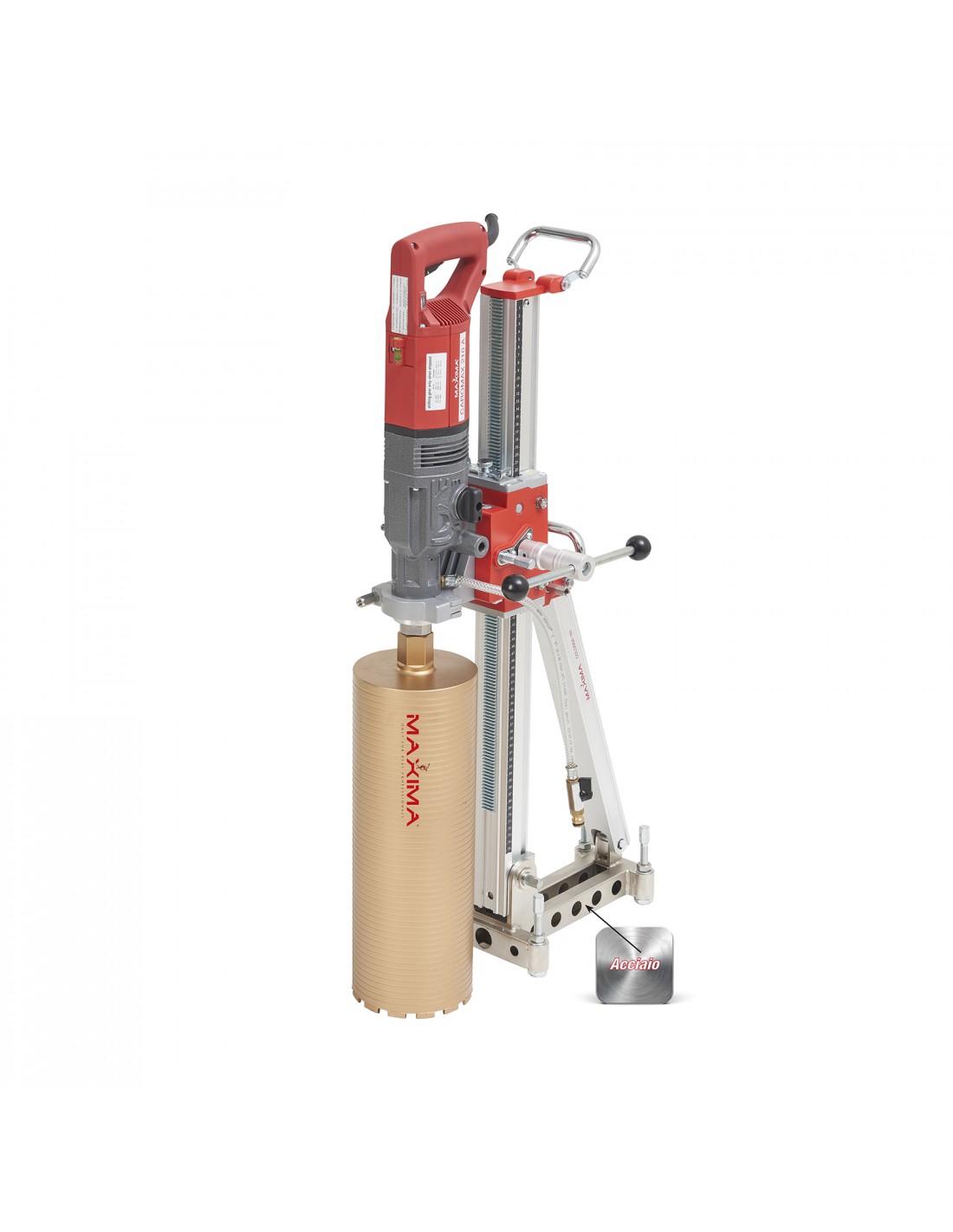

This tool for drilling is the combination of Column 160 and Caromax 1800 Wet, which can be also sold separately.
Sign Up or Log in to see the prices and buy the products.
This tool for drilling is the combination of Column 160 and Caromax 1800 Wet, which can be also sold separately. The maximum capacity of the system is 162 mm and can be fixed using the traditional anchor bolt system or by means of a vacuum system. Slantable up to 45°.
| TECHNICAL FEATURES | |
| Motor: Caromax 1800 Water | Slantable at 45° |
| Fitting: 1” 1 / 4 and 1 / 2 Gas | Quick motor release |
| Suitable for max. 162 mm holes | Column weight: 13 Kg |
| Useful stroke: 500 mm | Motor weight: 7,4 Kg |
| Base set for vacuum fixing | With Vacumax suction device |
- Weight
- 18,8 Kg
- Drilling type
- Water
- Max drilling diameter
- 205 mm
- Fitting
- 1/2 Gas - 1"1/4
- Useful stroke
- 510 mm
- Engine
- Caromax 210A
- Column height
- 850 mm
- Tilting
- 45°
