Caromax 400
CAROMAX400
made in EU
-certificate CE

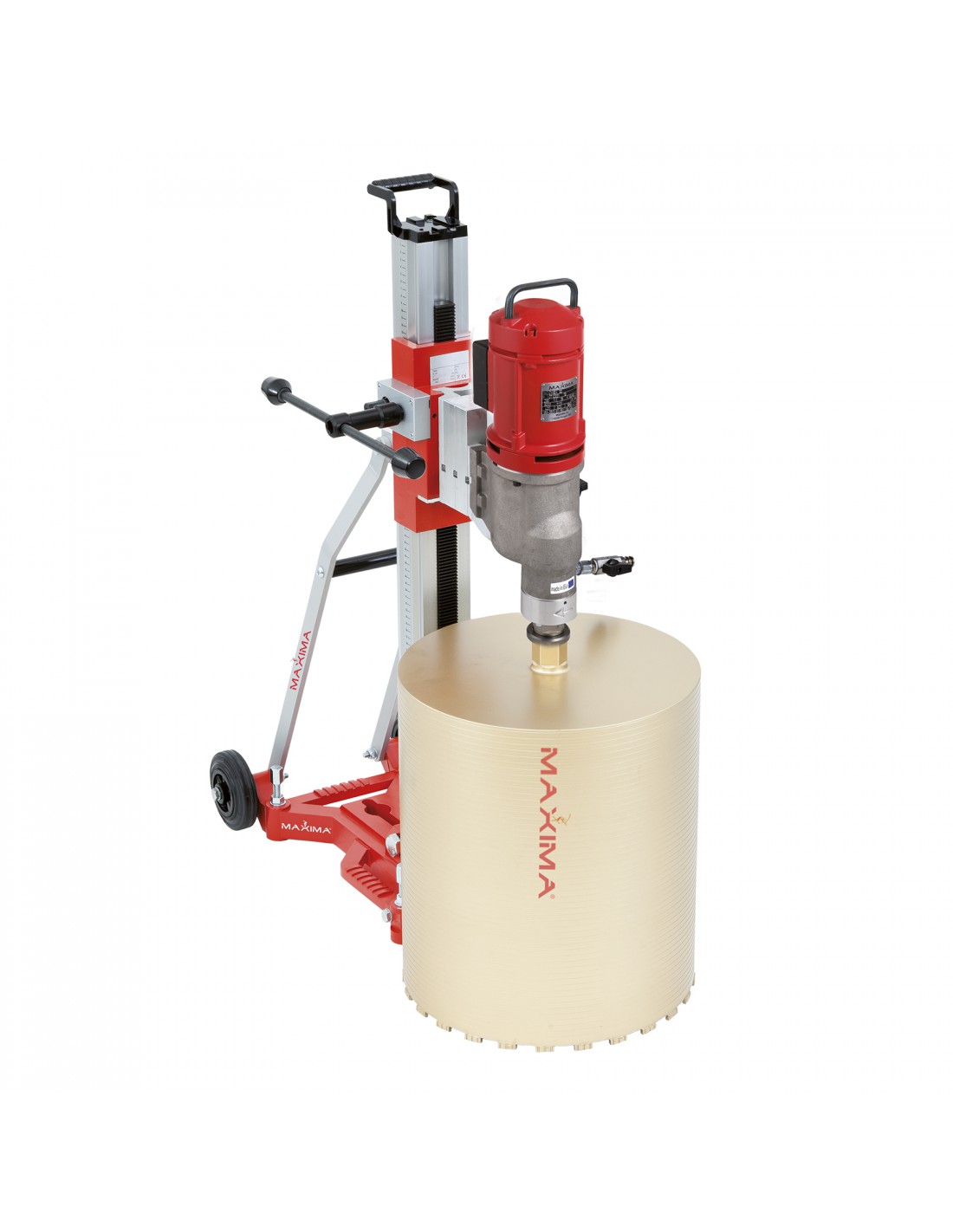

As the name says, Caromax 400 has a maximum diamond core bit capacity of 400 mm diameter.
Sign Up or Log in to see the prices and buy the products.
As the name says, Caromax 400 has a maximum diamond core bit capacity of 400 mm diameter. The motor is the 3200 W CWEK32. Ideal for big diameter work in the construction sector; its rotation speed is less suited for drilling diameters smaller than 80 mm. Not usable with fixing with vacuum pumps.
| TECHNICAL FEATURES | |
| Water with 3200 W – 230 V motor | 3 mechanically selectable speeds: |
| Suitable for drilling diam. max. 400 mm | 1 – 420 rpm Drilling capacity: 165 – 350 mm 2 – 820 rpm Drilling capacity: 80 – 160 mm 3 – 1250 rpm Drilling capacity: 55 – 105 mm |
| Useful stroke: 500 mm | |

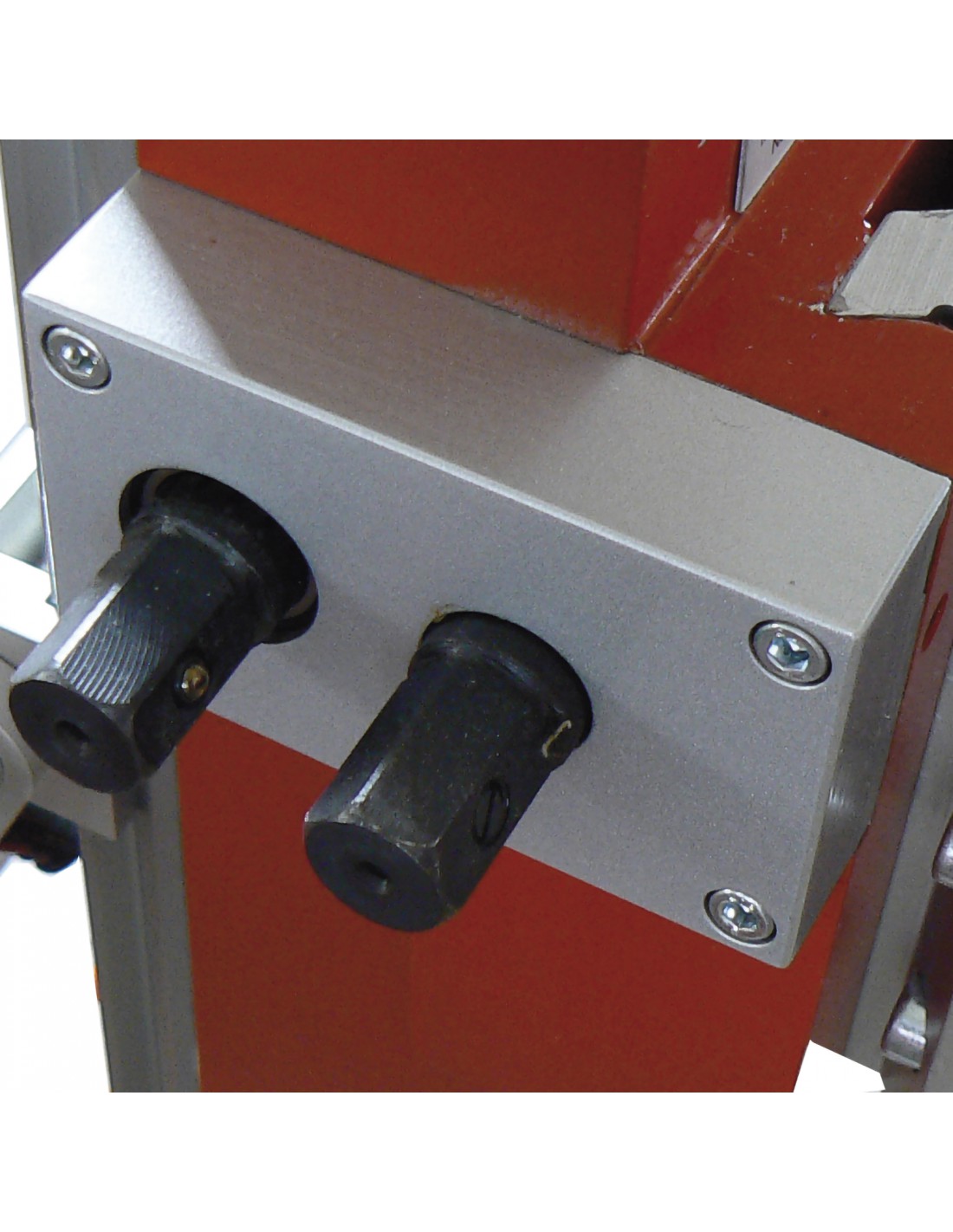

| Fitting: 1”1/4 | Double mechanical feeding of the trolley: 1:1 and 1:2 |
| Slantable at 45°. | Column weight: 19 Kg |
| Quick motor release | Motor weight: 11.9 Kg |
- Weight
- 31 Kg
- Drilling type
- Water
- Max drilling diameter
- 400 mm
- Fitting
- 1"1/4
- Useful stroke
- 500 mm
- Speed
- 420 - 820 - 1250 RPM
- Engine
- CWEK32 with water
- Column height
- 980 mm
- Tilting
- 45°
