Maxi 400 Bridge
TMA400PB1 + LRS400F25
made in EU
– certificate CE

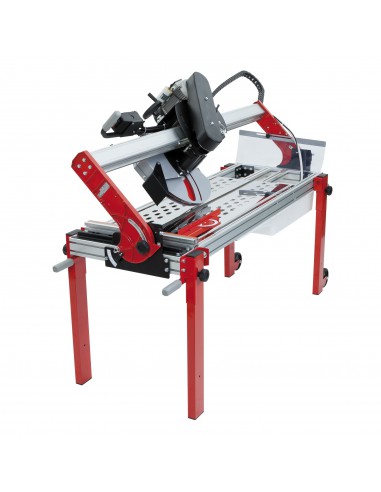

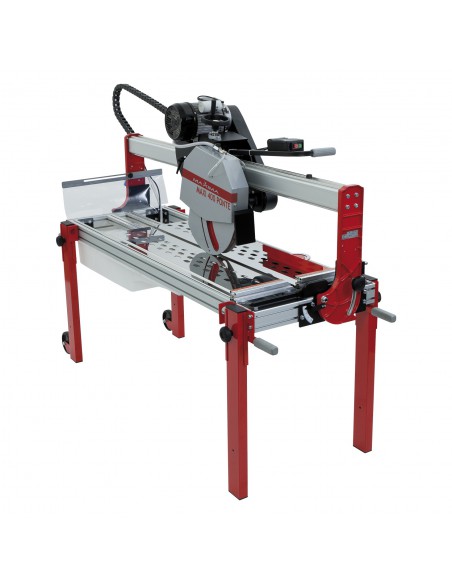

Maxi 400 Bridge is a multipurpose machine: it is suitable for cutting ceramic tiles, bricks or masonry in general.
Sign Up or Log in to see the prices and buy the products.
Maxi 400 Bridge is a multipurpose machine: it is suitable for cutting ceramic tiles, bricks or masonry in general. Cutting length is 135 cm and maximum cutting height is 20 cm. The six bearings ensure constant precision over time and a long life. The machine is supplied with the Laser Red Silent blade produced with the “Detenso”technique.
| TECHNICAL FEATURES | |

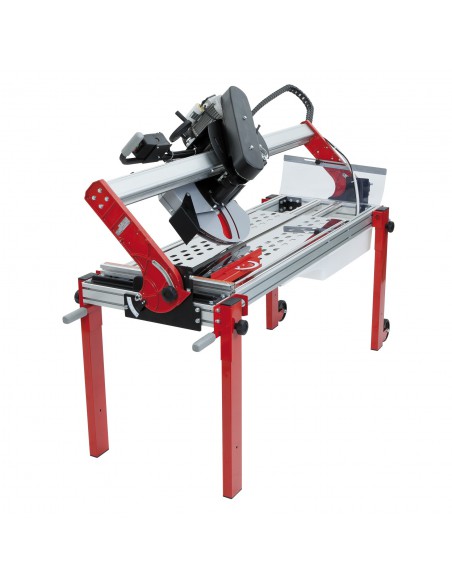

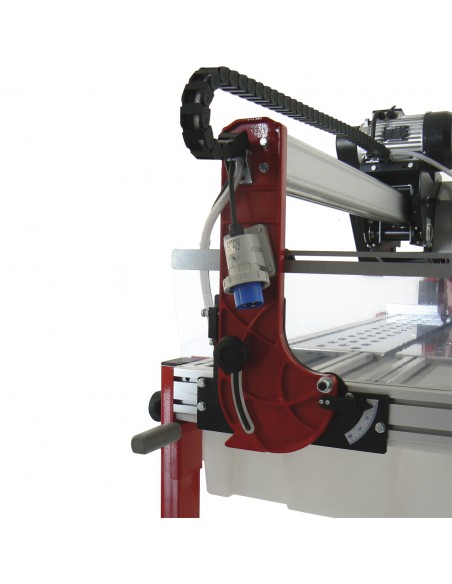

| Available with a 230 V – 2.2 kW | 45° slantable head (only with 350 diam. blade) |

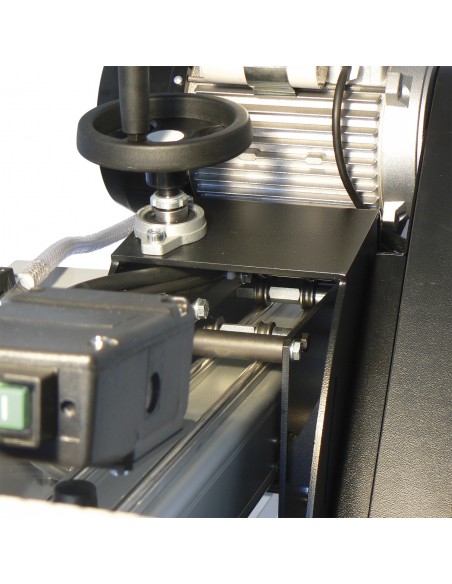

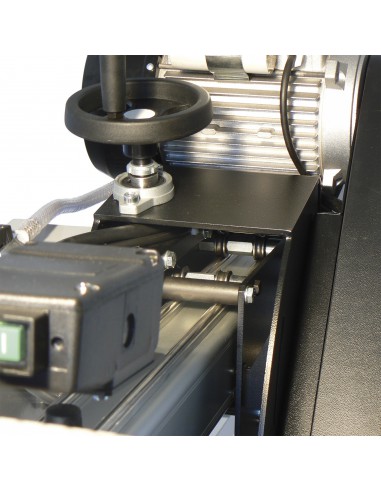

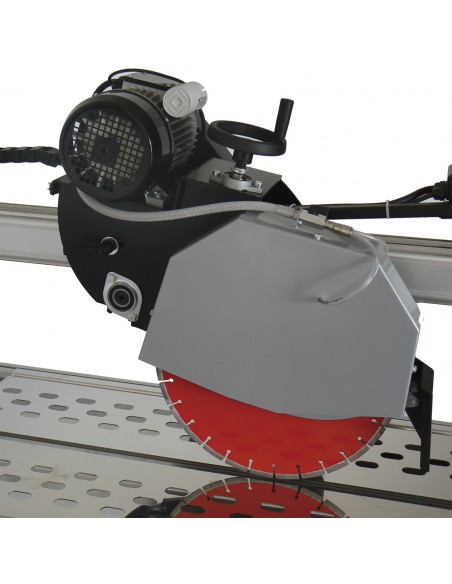

| 400 mm diamond blade – 25.4 mm hole | Double track sliding head on 6 bearings |
| Cutting height going over once, max 140 mm 204 mm going over twice |
Plastic tray for collecting water, slanting and extractable |
| Dimensions (WxDxH): 170 x 56 x 145 cm | |
| Cutting length max 1350 mm | Weight: 115 Kg |
